CR803 RETRANSFER ID CARD PRINTER

image_not_found

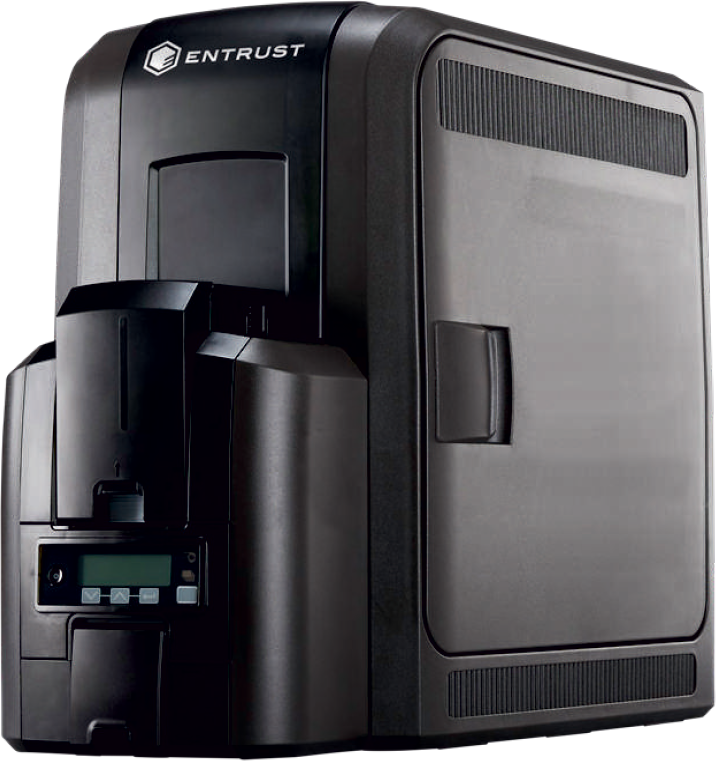

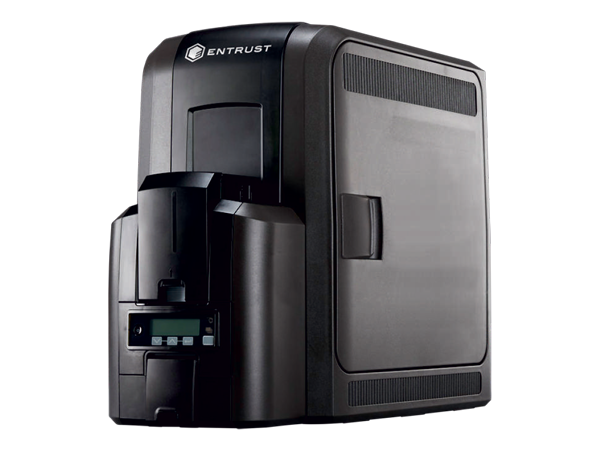

CR803 Retransfer Id Card Printer

Get a high-end look for every card design

Pigment ink prints lifelike skin tones so you can more accurately authenticate each cardholder to improve security
Over-the-edge printing with retransfer technology allows you to print on multiple card types, including technology cards
On-demand printing means you can print exactly the design you need, eliminating the need for pre-printed card stock

Use its versatility to your advantage

Print corporate badges, school IDs, driver’s licenses, and other high assurance IDs
Print on the card material that meets your needs and budget — from PVC to PVC composite, polycarbonate (PC) or PET card type
AddtInemodueformorecad features as your needs change

KEY FEATURES AND BENEFITS

Protect the integrity of your data

TPM module included in every printer — use Entrust Adaptive Issuance Remote Monitoring and Management (RMM) to insert, manage, and remove user-specific certificates and keys in a secure location
Secure boot prevents system startup at any indication of malware
Optional inline tactile impression module provides enhanced security to the card

image_not_found

Technical Specifications

CR803 Printer Standard Features And Specifications

Print technology

Retransfer pigment ink

Print capabilities

Dual-sided, over-the-edge printing

Print resolution

300 dots per inch (dpi)

Print speed

Full-color printing: Single-sided (CMYK) – up to 103 cards per hour (cph) ; Dual-sided (CMYK-K) – up to 70 cards per hour (cph)

Color modes

True Color (ICC) – prints color as close as possible to image as defined in the card design
Legacy SR/CR – prints as close as possible to the SR200, SD300, and SR300e card printers
Vivid — printer colors with higher saturation and contrast

Card capacity

Input hopper – up to 125 cards
Output hopper – up to 25 cards
Card input size — 0.030 inches to 0.040 inches (0.76 mm to 1.01 mm)

Card types supported

ISO/IEC 7810 I D1
Size: .030 in. (.762 mm) (+/-10%}, also known as CR80/030 cards

Card materials supported

PVC, PVC Composite, PET, PET-G, and polycarbonate (PC)
As card construction can vary, recommend compatibility testing of specific PET, PETG, and polycarbonate card types prior to production.

Operating environment

60°F – 95°F (15°C – 35°C)

Physical dimensions

L 21.4 in. x W 10.1 in. x H 15.6 in. / L 54.34 cm x W 25.55 cm x H 39.68 c

Weight

28 Ib. (12.7 kg); wilI vary with options

Connectivity

USB and Ethernet

Warranty

Printer: 36-month standard warranty /Printhead: Limited lifetime warranty

CR803 Optional Features And Supplies

Color ribbons

CMYK 1,000 images (single-sided)
CMYK-K 1,000 images (dual-sided)

Clear retransfer film

1,000 images (single-sided), 500 images (dual-sided)

Magnetic stripe encoding

ISO/IAT h1agnetic Stripe Encoding / JIS Magnetic Stripe Encoding

Smart card encoding

Single wire – Contact ISO 7816 T=0, 1
Contactless
Loosely coupled – Contact ISO 7816 T=0, 1
HID iCLASS, read/write or read-only encoder
PC Prox
