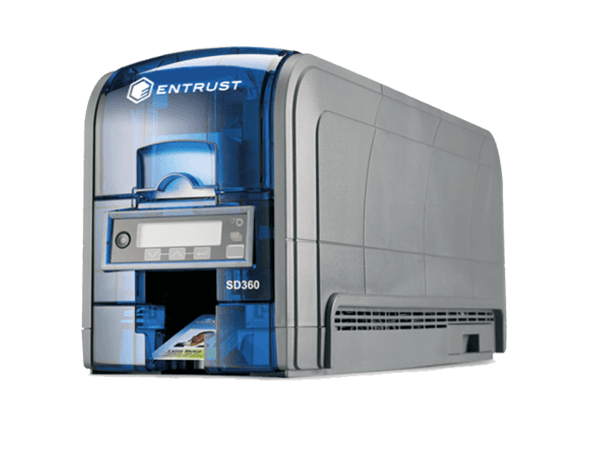

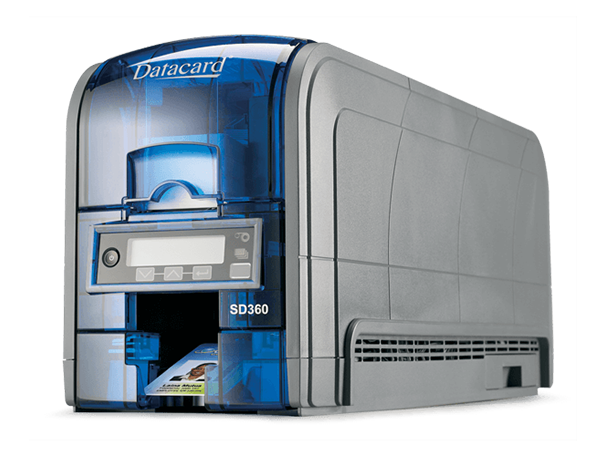

ID Card Printer

Print technology

• Direct-to-card dye-sublimation/resin thermal transfer

Print capabilities

• One- or two-sided, edge-to-edge printing
• Full-color and monochrome printing capability
• Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
• Printer pooling/sharing (available soon)
• UV printing

Print resolution

• 300 dots per inch, 256 shades per color panel
• High-quality mode: 300 x 600 dots per inch; enhanced text, bar code and graphics printing 300 x 1200 dots per inch; enhanced text and bar code

Print speed

• Full-color: up to 200 cards per hour, one-sided (YMCKT*); up to 155 cards per hour, two-sided (YMCKT-K)
• Monochrome: up to 830 cards per hour, one-sided (black HQ)

Card capacity

• Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
• Manual feed: 1-card input; 5-card output for 0.030 in. (0.76 mm) cards (SD260)

Physical dimensions

• L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)

Weight

• 12.0 lbs (5.4 kg) (depending on options)

Operating system support for printer driver

• Windows® 7 (32 and 64 bit)
• Windows® 8 (32 and 64 bit)
• Windows® 10 (32 bit and 64)

Environment/energy-saving features

• Biodegradable supply cores made with EcoPure® additive
• Recyclable enclosure plastics (marked with recycle symbol per Resin Identification Code)
• Recyclable packaging

Included with printer

• Printer driver CD, Quick Install Guide and warranty
• Complimentary TruCredential™ Express identification software
• Cleaning pen
• Cleaning roller spindle
• USB cable
• Power supply
• Power cord (region-specific)

Warranties

• 12-month standard depot warranty
• 12-month printhead warranty (no pass restrictions)
