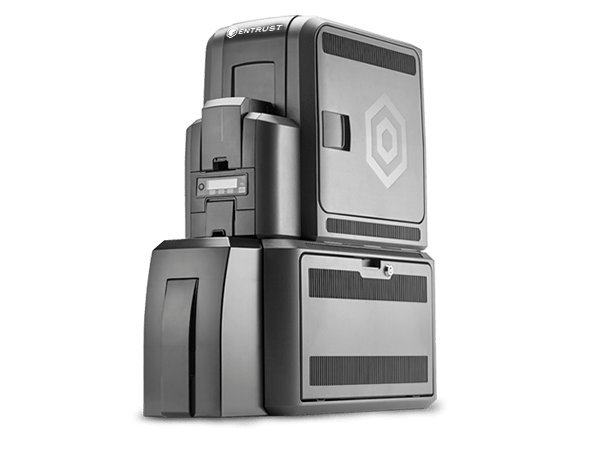

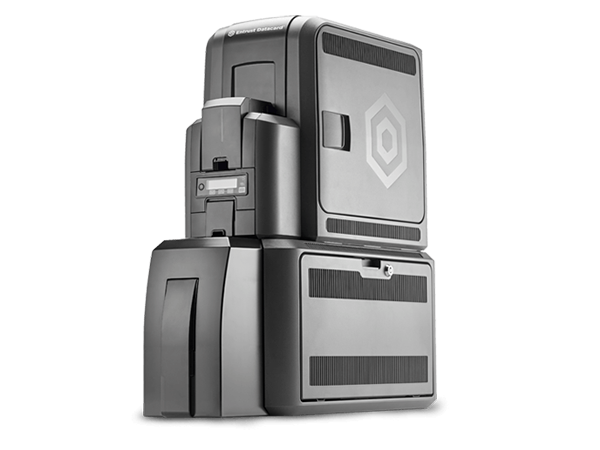

CR805 Retransfer ID Card Printer With Inline Lamination Module
The Entrust CR805™ Retransfer Card Printer With Inline Lamination Module is the next generation of print on demand solutions. With brilliant color and great image quality, this new platform gives companies the flexibility and features they need to issue their ID cards– right from their desktop.
A stunning, high-end look for every card design – photo quality imagery and high resolution printing show off your brand to the world.
Improved security of schools, airports and other key facilities – pigment ink for lifelike skin tones and easier card-to-cardholder authentication. In addition, the system has enhanced security features to protect the integrity of your data.
Savings for your card program – long lasting images mean fewer card replacements and system modularity means you can add to the platform as card program needs change. Add new encoding options or lamination with ease.
- One- or two-sided printing
- Modular one- to two-sided printing upgrade
- Magnetic stripe encoding and/or smart card personalization
- Extended 100-card output hopper
- Extended 200-card input hopper
- Six-compartment multi-hopper; Six 125-card hoppers, 750-card total capacity
- Kensington® security lock for printer
CR805 Printer With Inline Lamination Module Standard Features And Specifications
Print technology Retransfer pigment ink
Print capabilities Single or dual-sided, over-the-edge printing
Print resolution 600 dots per inch (dpi)
Print speed
Full color printing
Single-sided (CMYKP) – up to 100 cards per hour (cph)
Double-sided (CMYKP-KP) – up to 66 cards per hour (cph)
Color modes
True Color (ICC) – prints color as close as possible to image as defined in the card design
Legacy SR/CR – Close match to the CR500 Instant Issuance System
Vivid – printer colors with higher saturation and contrast
Card capacity
Input hopper – 125 cards
Output hopper – 25 cards (Optional 125 card)
Card input size – 0.030 inches to 0.040 inches (0.76 mm to 1.01mm)
Operating environment 60°F – 95°F (15°C – 35°C)
Physical dimensions
L 21.4 in. x W 10.1 in. x H 15.6 in.
L 54.34 cm x W 25.53 cm x H 39.68 cm
Weight 28 lb. (12.7 kg); with options will vary
Connectivity USB and Ethernet
Warranties
Printer: 12 month standard warranty
Printhead: Limited lifetime warranty
CR805 Optional Features And Supplies
Magnetic stripe encoding ISO/IAT
Magnetic Stripe Encoding
JIs Magnetic Stripe Encoding
SmartCard encoding
Single wire – Contact ISO 7816 T=0, 1
Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa (DES & AES)
Loosely Couple – Contact ISO 7816 T=0, 1
Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa
- HID iCLASS, Read/write or read-only encoder
- PC Prox
Color ribbons
CMYKP: 1000 images (single-sided); 500 images (dual-sided)
CMYKP-KP: 750 images
CMYP-KPi: 750 images
CMYKP-KPi: 500 images
FCMYP-KP: 750 images
Clear retransfer film
Two options:
1000 images (single-sided), 500 images (dual-sided)
1500 images (single-sided), 750 images (dual-sided)
Download Brochure
For more detailed information about the faetures and specification of the product, please download the brochure
