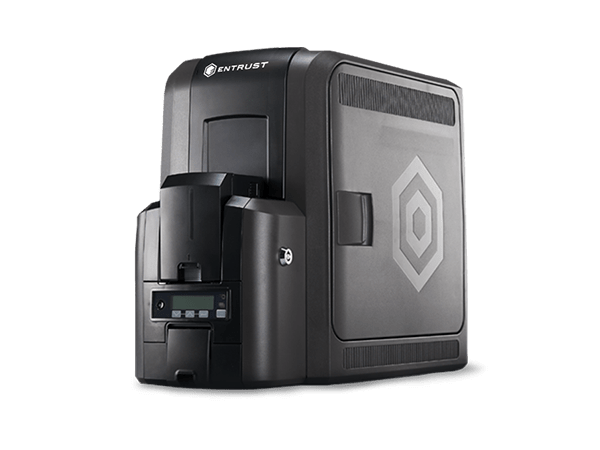

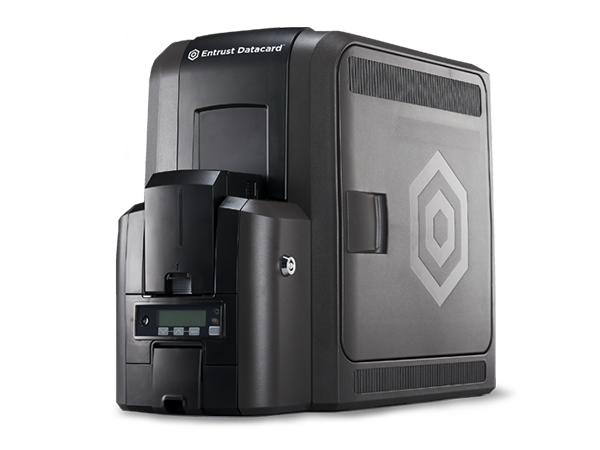

CR805 Retransfer ID Card Printer

The Entrust CR805™ Retransfer Card Printer is the next generation of print on demand solutions. With brilliant color and great image quality, this new platform gives companies the flexibility and features they need to issue their ID cards– right from their desktop.

A stunning, high-end look for every card design – photo quality imagery and high resolution printing show off your brand to the world.

Improved security of schools, airports and other key facilities – pigment ink for lifelike skin tones and easier card-to-cardholder authentication. In addition, the system has enhanced security features to protect the integrity of your data.

Savings for your card program – long lasting images mean fewer card replacements and system modularity means you can add to the platform as card program needs change. Add new encoding options or lamination with ease.

image_not_found

SPECIFICATIONS

CR805 Printer Standard Features And Specifications

  • Print technology: Retransfer pigment ink
  • Print capabilities: Single or dual-sided, over-the-edge printing
  • Print resolution 600 dots per inch (dpi)

Print capabilities
Print speed

Full color printing

Single-sided (CMYKP) – up to 100 cards per hour (cph)

Double-sided (CMYKP-KP) – up to 66 cards per hour (cph)

Color modes

True Color (ICC) – prints color as close as possible to image as defined in the card design

Legacy SR/CR – Close match to the CR500 Instant Issuance System

Vivid – printer colors with higher saturation and contrast

Card capacity

Input hopper – 125 cards

Output hopper – 25 cards (Optional 125 card)

Card input size – 0.030 inches to 0.040 inches (0.76 mm to 1.01mm)

Operating environment 60°F – 95°F (15°C – 35°C)
Physical dimensions

L 21.4 in. x W 10.1 in. x H 15.6 in.

L 54.34 cm x W 25.53 cm x H 39.68 cm

Weight 28 lb. (12.7 kg); with options will vary
Connectivity USB and Ethernet
Warranties

Printer: 12 month standard warranty

Printhead: Limited lifetime warranty

CR805 Optional Features And Supplies

Magnetic stripe encoding

ISO/IAT Magnetic Stripe Encoding

JIs Magnetic Stripe encoding

SmartCard encoding

Single wire – Contact ISO 7816 T=0, 1

Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa (DES & AES)

Loosely Couple – Contact ISO 7816 T=0, 1

Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa

  • HID iCLASS, Read/write or read-only encoder
  • PC Prox
Color ribbons

CMYKP: 1000 images (single-sided); 500 images (dual-sided)

CMYKP-KP: 750 images

CMYP-KPi: 750 images

CMYKP-KPi: 500 images

FCMYP-KP: 750 images

Clear retransfer film

Two options:

1000 images (single-sided), 500 images (dual-sided)

1500 images (single-sided), 750 images (dual-sided)

Download Brochure

For more detailed information about the features and specification of the product, please download the brochure
