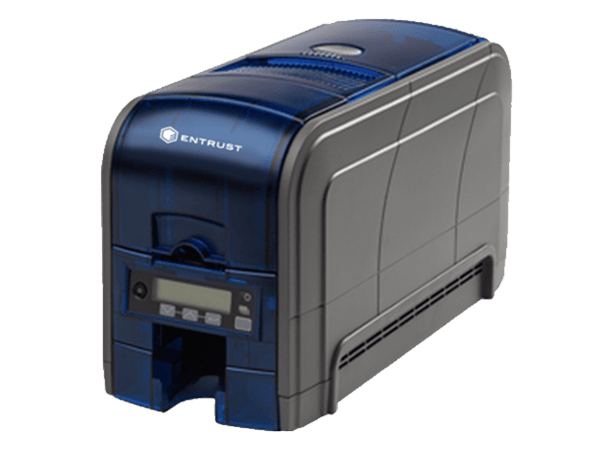

SD160 Single Side ID Card Printer
An extension of the proven Entrust SD Series, the affordable and efficient Entrust SD160™ card printer offers the right combination of technologies to meet a wide range of application requirements. Direct-to-card (DTC) printing technologies provide the versatility to reliably produce attractive cards with high quality, full-color or single-color photos, graphics and text.
Featuring rewritable printing, inline magnetic stripe encoding, a unique ultraviolet (UV) printing security feature and intuitive operation, the SD160 card printer provides security and simplicity while protecting your bottom line.
- Launch Your ID card program with the right mix of affordability, security and simplicity
- Get one reliable system for producing full-color or monochrome cards, plus magnetic stripe encoding
- Add an invisible layer of covert security with a UV ink ribbon option
- Expect intuitive operation and less user intervention
- Produce a wide variety of high quality photo ID cards or badges
SPECIFICATIONS
Print technology
- Direct-to-card dye-sublimation/resin thermal transfer
Print capabilities
- One-sided, edge-to-edge printing
- Rewritable printing
- Full-color and monochrome printing capability
- Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
- Printer pooling/sharing
- UV printing
Print resolution
- 300 dots per inch, 256 shades per color panel
- High-quality mode: 300 x 600 dots per inch; enhanced text, bar code and graphics printing 300 x 1200 dots per inch; enhanced text and bar code
Print speed
- Full-color printing: up to 150 cards per hour, one-sided (YMCKT)
- Monochrome: up to 500 cards per hour, one-sided (black HQ)
Card capacity
- Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
- Exception slot manual feed: 1-card input
Physical dimensions
- L 15.4 in. x W 6.9 in. x H 8.8 in. (39.1 cm x 17.5 cm x 22.4 cm)
Weight
- 8.1 lbs (3.7 kg) (depending on options)
Operating system support for printer driver
- Windows 7 (32 and 64 bit)
- Windows 8.1 (32 and 64 bit)
- Windows 10® (32 bit and 64)
- Windows Server 2008 R2 (64 bit)
- Windows Server 2012 (64 bit)
Included with printer
- Printer driver CD, Quick Install Guide and warranty
- Complimentary TruCredential™ Express identification software
- Cleaning swab (5/pk)
- Cleaning roller spindle
- USB cable
- Power supply
- Power cord (region-specific)
Warranties
- 12-month standard depot warranty
- 12-month printhead warranty (no pass restrictions)
Download Brochure
For more detailed information about the features and specification of the product, please download the brochure
