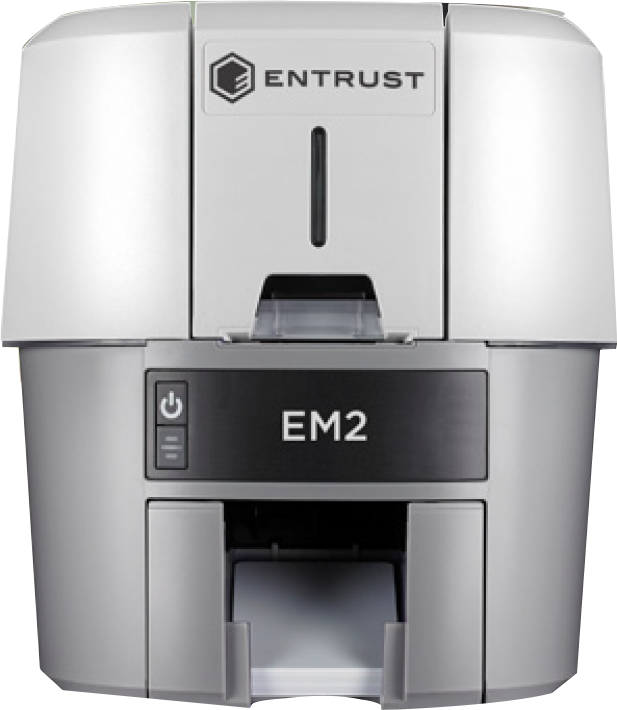

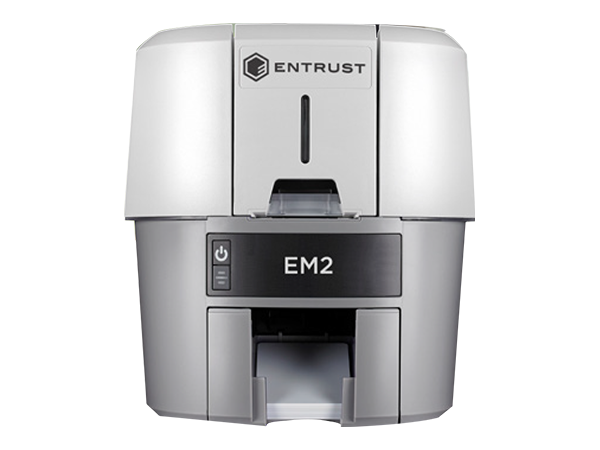

EM2 DIRECT-TO-CARD PRINTER

The Entrust EM2 Direct-to-Card Printer is all about value and versatility. With dual-sided printing, secure card encoding capabilities, and USB and ethernet connectivity, it’s the perfect budget-friendly printer for a variety of applications such as:

  • Corporate IDs
  • Student IDs
  • Retail gift and loyalty cards
  • Membership ID cards
  • Transportation cards

KEY FEATURES AND BENEFITS

Small footprint

  • Allows users to work effectively in any location or workstation size.

Efficient

  • Print up to 880 single-sided monochrome cards per hour; 225 full-color single-sided cards per hour.

Versatile

  • Single- or dual-sided printing

Affordable

  • The EM1 card printer and its supplies are competitively priced to fit modest budgets.
  • USB and ethernet connectivity
  • Contact and contact less smart card encoding

Affordable

  • The EM2 card printer and its supplies are competitively priced to fit modest budgets.

Secure card option

  • Smart card and magnetic stripe encoding options allow you to create secure ID cards to give authorized users secure access to facilities, networks, and other privileges.

image_not_found

Technical Specifications

Standard Features And Specifications

Print technology

  • Dye sublimation

Print capabilities

  • Single- or dual-sided

Print resolution

  • 3OO dots per inch (dpi)

Print speed

  • Single-sided full-color (YMCKT): up to 225 cards per hour (cph)
  • Single-sided monochrome: up to 880 cph

Card capacity

  • Input hopper – up to 125 cards
  • Output hopper – up to 25 cards
  • Reject hopper: 10 cards

Card sizes

  • Thickness: 0.01 in. – 0.04 in. (0.25 mm -1.016 mm)
  • Dimension: CR-80, CR-79

Operating environment

  • 6O°F – 95°F (15°C – 35°C)

Physical dimensions

  • L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

  • Single-sided printing: 11.3 lbs. (5.13 kg)

Connectivity

  • USB and Ethernet

Warranty

  • 12 Months

Optional Features And Supplies

Magnetic stripe encoding

  • ISOA/IAT

Smart card encoding

  • Loosely coupled:
  • Contact: ISO7816 T=O (T=1) (dual-sided only)
  • Contactless: ISO 14443 A/B, ISO 15693, MIFARE, MIFARE° DESFire° EV1/ EV2, HID Prox, iClass, iClass SE, iClass Seos, dual-sided only: Felica

Color ribbons**

  • YMCKT 250/500 images
  • ymcKT 650 images
  • YMCKT-KT: 350 images
  • ymcKT-KT: 435 images

Monochrome ribbons***

  • Black 1,500 images
  • White 1,500 images
  • Additional monochrome options available

Download Brochure

For more detailed information about the features and specification of the product, please download the brochure
