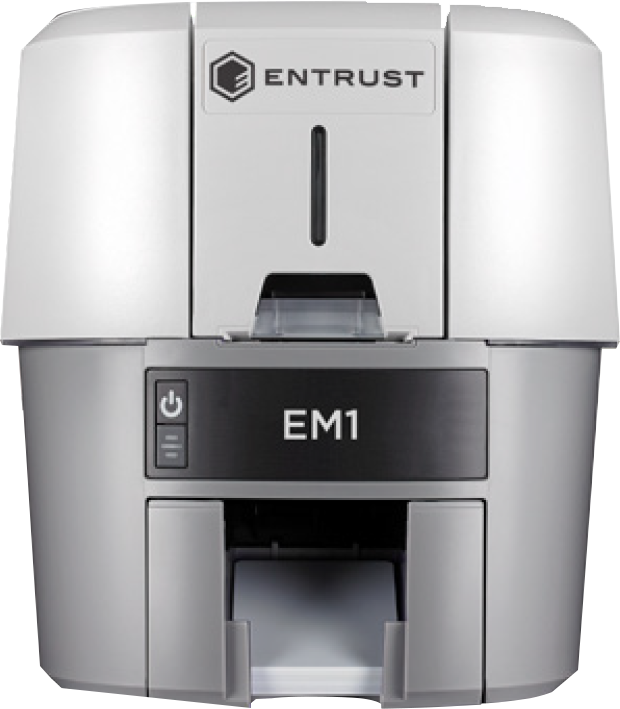

EM1 Direct-to-Card Printer

Efficient, affordable single-sided printing

OVERVIEW

The Entrust EM1 Direct-to-Card Printer is all about value and versatility. With 300-dpi full-color or monochrome printing and secure card encoding capabilities, it’s the perfect budget-friendly printer for a variety of applications such as:

  • Corporate IDs
  • Student IDs
  • Retail gift and loyalty cards
  • Membership ID cards
  • Transportation cards

KEY FEATURES AND BENEFITS

Small footprint

  • Allows users to work effectively in any location or workstation size.

Easy-to-use

  • Anybody can use it, not just the service techs.

Efficient

  • Print up to 660 single-sided monochrome cards per hour; 175 full-color single-sided cards per hour.

Affordable

  • The EM1 card printer and its supplies are competitively priced to fit modest budgets.

Secure card option

  • Smart card and magnetic stripe encoding options allow you to create secure ID cards to give authorized users secure access to facilities, networks, and other privileges.

image_not_found

Technical Specifications

Print technology

  • Dye sublimation

Print capabilities

  • Single- or dual-sided

Print resolution

  • 3OO dots per inch (dpi)

Print speed

  • Single-sided full-color (YMCKT): up to 175 cards per hour (Full Color)
  • Single-sided monochrome: up to 660 cph

Card capacity

  • Input hopper – up to 125 cards
  • Output hopper – up to 25 cards
  • Reject hopper: 10 cards

Card sizes

  • Thickness: 0.01 in. – 0.04 in. (0.25 mm -1.016 mm)
  • Dimension: CR-80, CR-79

Operating environment

  • 6O°F – 95°F (15°C – 35°C)

Physical dimensions

  • L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

  • Single-sided printing: 11.3 lbs. (5.13 kg)

Connectivity

  • USB

Warranty

  • 12 months

Optional Features And Supplies

Magnetic stripe encoding

  • ISOA/IAT

Smart card encoding

  • Loosely coupled:
  • Contact: ISO7816 T=O (T=1) (dual-sided only)
  • Contactless: ISO 14443 A/B, ISO 15693, MIFARE, MIFARE° DESFire° EV1/ EV2, HID Prox, iClass, iClass SE, iClass Seos, dual-sided only: Felica

Color ribbons**

  • YMCKT 250/500 images
  • ymcKT 650 images
  • YMCKT-KT: 350 images
  • ymcKT-KT: 435 images

Monochrome ribbons***

  • Black 1,500 images
  • White 1,500 images
  • Additional monochrome options available

Secure card option

  • Smart card and magnetic stripe encoding options allow you to create secure ID cards to give authorized users secure access to facilities, networks, and other privileges.

Download Brochure

For more detailed information about the features and specification of the product, please download the brochure
