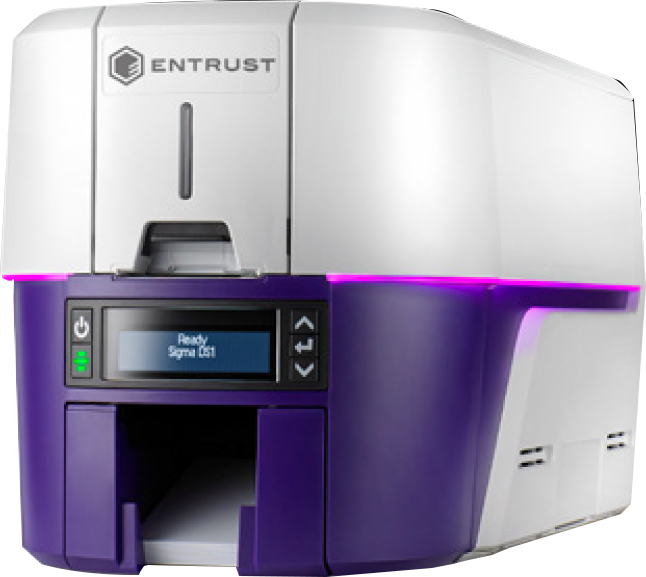

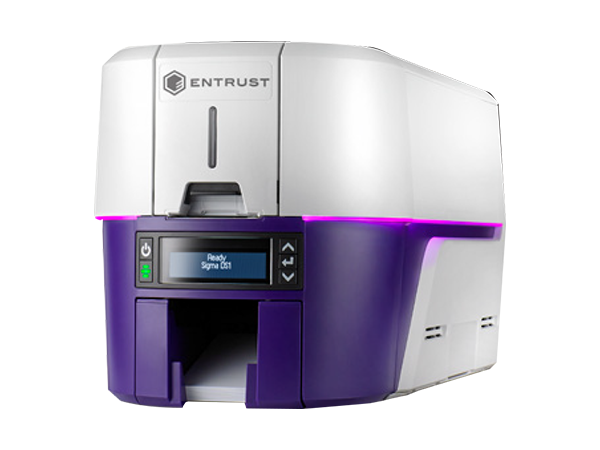

Sigma DS1/DS2 Direct-to-Card Printer

HIGHLIGHTS

Sigma: The next generation of direct-to-card printing

Entrust Sigma ID Card Printers are specifically designed for today’s cloud environments and give you the ability to easily issue secure identities

  • Simple From unboxing to issuing ID cards and mobile flashpasses to managing your printer, we made sure Sigma was the most user-friendly ID card issuance solution in the world
  • Secure Our industry-leading issuance security architecture will help protect your cards and your customers’ data during each step of the issuance process
  • Smart Forward-thinking technology and scalability allow you to expand your ID card program as your needs evolve

KEY FEATURES AND BENEFITS

The world’s most user-friendly ID card printer

  • Intuitive printer dashboard lets you see printer status, order supplies, check cleaning status, update firmware, or contact help – all from your mobile device
  • Seamless self-service lets you access how-to videos and other helpful resources by simply scanning QR code on the LCD display
  • Variable LED light ring lets you incorporate brand colors or other customization into your ambient environment
  • Pre-loaded ribbon cassettes make switching ribbons easy

Unmatched security

  • Secure boot protects system from malware or virus on boot-up
  • Trusted Platform Module (TPM) manages the printer’s own TLS/SSL certificates and keys
  • Connection and data sent between software and printer is encrypted
  • Customer data is encrypted and is not stored in the printer after printing is complete
  • Luster printing and other security features added to cards protect from tampering and counterfeiting

Flexibility and scalability built for the future

  • Issuance capabilities include physical cards and digital mobile flashpass
  • Choose on-premises or cloud-hosted deployment
  • Choose on-premises or cloud-hosted deployment
  • Print anytime, anywhere with your mobile device (iOS, Android, Windows)

Affordable

  • The EM2 card printer and its supplies are competitively priced to fit modest budgets.

Secure card option

  • Smart card and magnetic stripe encoding options allow you to create secure ID cards to give authorized users secure access to facilities, networks, and other privileges.

image_not_found

Technical Specifications

Print technology

  • Direct-to-card dye-sublimation/resin thermal transfer

Print capabilities

  • One-sided (simplex) - DS1 or DS2 two-sided (duplex) edge-to-edge printing
  • Full-color and monochrome printing capability in the same printer
  • Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
  • UV printing

Print resolution

  • Standard mode: 300 x 300 dots per inch; standard text, bar code and graphics printing
  • High-quality mode: 300 x 600 dots per inch for enhanced text, bar code and graphics printing; 300 x 1200 dots per inch for enhanced text and bar code printing
  • 256 shades per color panel

Print speed

  • Sigma DS1 : Full-color: Up to 175 cards per hour,
  • Sigma DS2 : Full-color: Up to 225 cards per hour Single -sided (YMCKT); Up to 145 cards per hour, two-sided (YMCKT-K)
  • Monochrome: Up to 1,000 cards per hour, one-sided (Black HQ)

Card capacity

  • Automatic feed: 125-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
  • Front exception card slot
  • Separate reject location and holding tray (two-sided printer model only)
  • Input hopper empty detection

Physical dimensions

  • One-sided printing: L 17.4 in. x W 8.9 in. x H 9 in. (44.2 cm x 22.4 cm x 22.4 cm)
  • Two-sided printing: L 21.2 in. x W 8.9in. x H 8.8 in. (53.8 cm x 22.4 cm x 22.4 cm)
  • Six-compartment multi-hopper: L 27.5 in x W 16.5 in. x H 14.5 in. (69.9 cm x 41.9 cm x 36.8 cm)

Weight

  • One-sided printing: 9.0 lbs (4.1 kg) (depending on options)
  • Two-sided printing: 12.0 lbs (5.49kg) (depending on options)
  • Six-compartment multi-hopper: 33.0 lbs (15.0 kg)

Operating system support for printer driver

  • Windows® 10, 8, and 7 (32 and 64 bit)
  • Windows Server 2012/2008 (64 bit)
  • Microsoft Windows® Hardware Quality Labs (WHQL) certified

Environment/energy-saving features

  • Biodegradable supply cores made with EcoPure® additive
  • Recyclable enclosure plastics (marked with recycle symbol per Resin Identification Code)
  • Recyclable packaging

Included with printer

  • Printer driver CD, Quick Install Guide and warranty
  • Cleaning pen
  • Cleaning roller spindle
  • USB cable
  • Power supply
  • Power cord (region-specific)

Warranties

  • 12-month standard depot warranty
  • 12-month printhead warranty (no pass restrictions)
